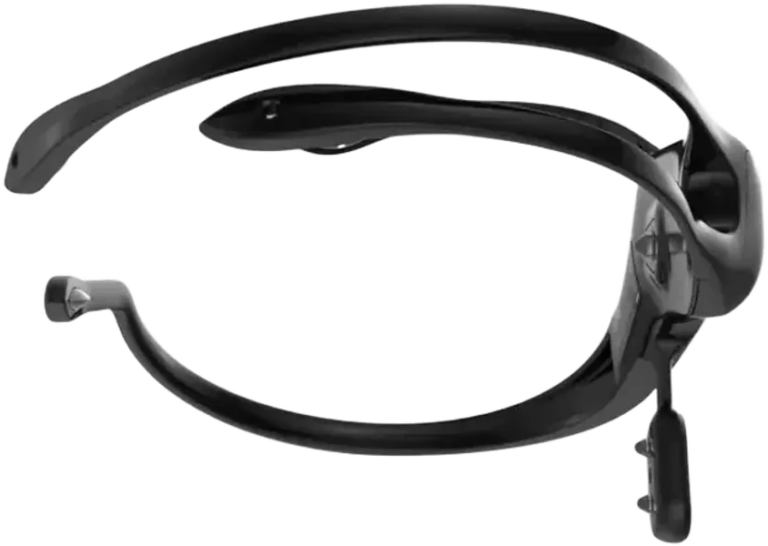

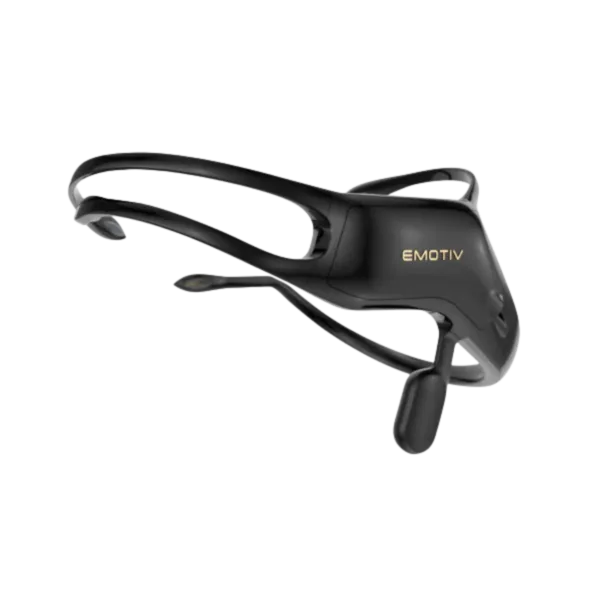

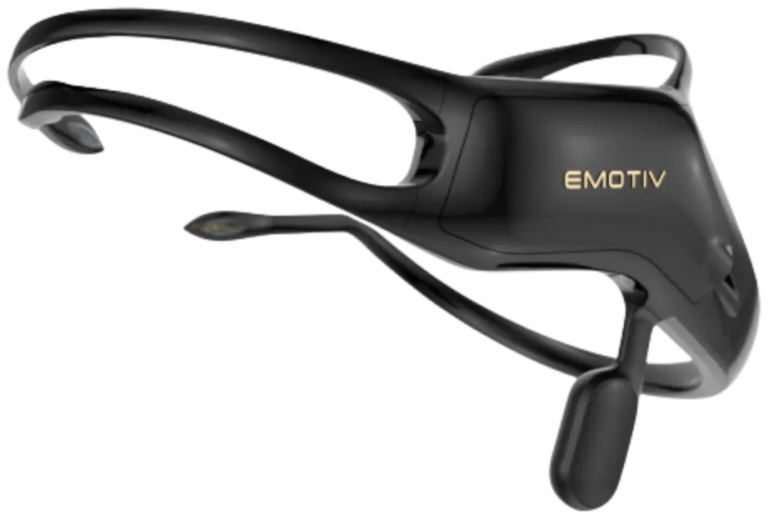

Emotiv Insight
For researchers, educators and BCI prototype developers who need a portable five-channel EEG system with faster preparation than a multi-electrode cap. This equipment is intended for research and personal use and is not a medical device.
Insight records five EEG channels: AF3, AF4, T7, T8 and Pz and uses two CMS/DRL reference electrodes. Access to detection features and available data export methods depend on the selected licence.

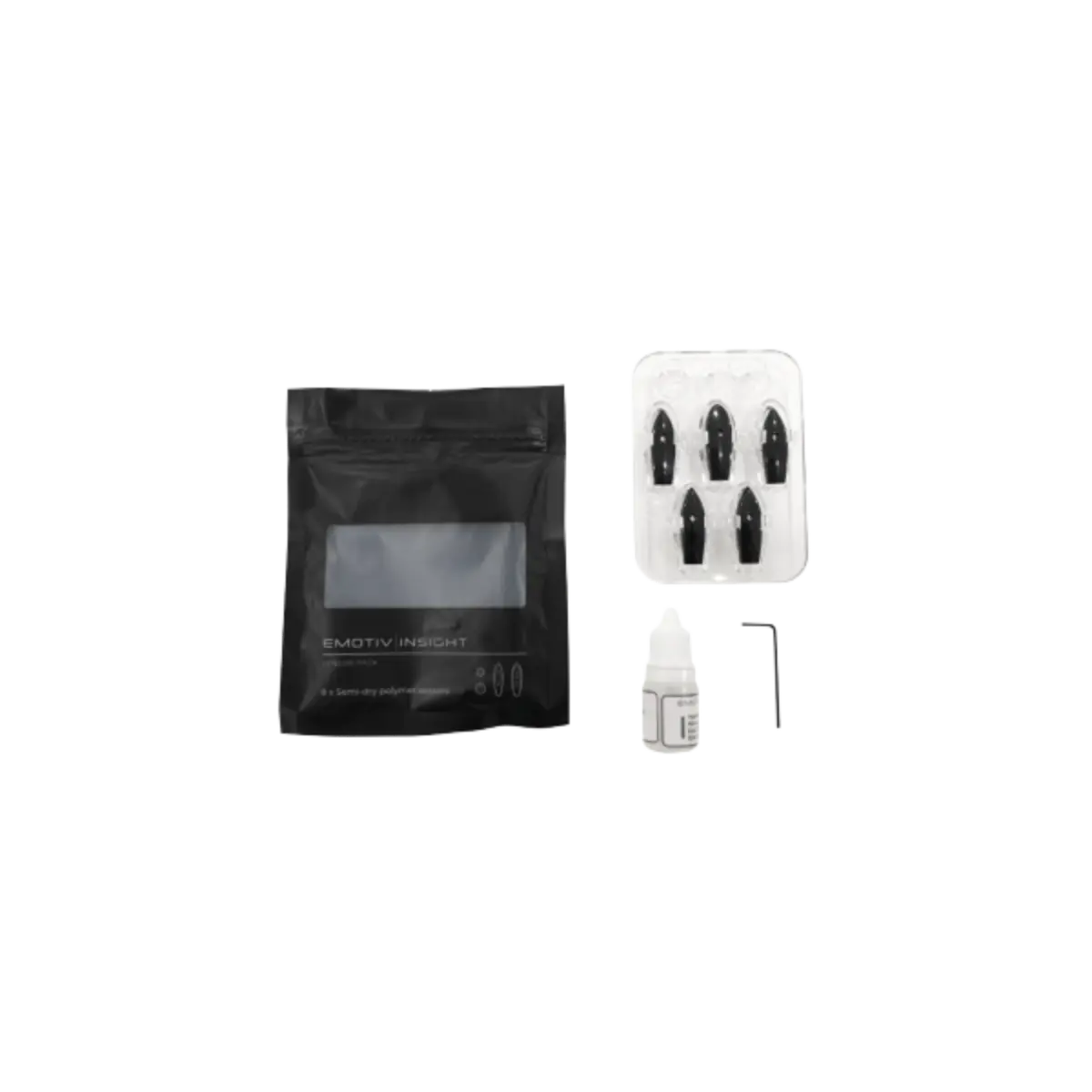

Insight uses semi-dry polymer sensors that are moistened with a small amount of the supplied fluid. They do not require a classic EEG gel.
Insight transmits data wirelessly over Bluetooth Low Energy. Connection stability and latency depend on the receiving device, radio environment and software configuration.
Built-in IMU module tracks head movement across three axes by combining data from an accelerometer, gyroscope and magnetometer. You can synchronise this information with EEG signals for more advanced analysis of user behaviour. This extends Insight to VR, AR and motion-control projects where accurate tracking of head orientation and movement dynamics is important.
The built-in battery provides many hours of use without frequent charging, while energy-efficient components support long research sessions. The headset has been designed for even weight distribution, while adjustable components accommodate different head shapes. Insight therefore remains comfortable even through many hours of work in a laboratory or in the field.
Insight records five EEG channels at AF3, AF4, T7, T8 and Pz, so it does not replace a 32-channel system. Access to Mental Commands, Performance Metrics and Facial Expressions depends on the licence; affective metrics are not available in workplace or educational deployments. EmotivPRO can run locally, while other services and the Cortex API may require an account, authorisation or cloud access.
Emotiv Flex 2 is more suitable when a project requires more channels and flexible electrode placement. Insight has the advantage of simpler setup and greater portability for demonstrations and early prototypes.
Before purchasing, establish the data format, licence, number of users, data storage method and participant consent requirements. Do not describe the system as having diagnostic or therapeutic applications.
No. It uses semi-dry polymer sensors that are moistened with a small amount of the supplied fluid.
Five: AF3, AF4, T7, T8 and Pz, with two reference electrodes CMS/DRL.
Raw EEG data is available, but detection features and some methods of use depend on the licence. Check which plan your project requires before purchasing.
No. Emotiv makes it clear that the product is not a medical device and is not used to diagnose or treat diseases.
Full technical specifications grouped by topic.
