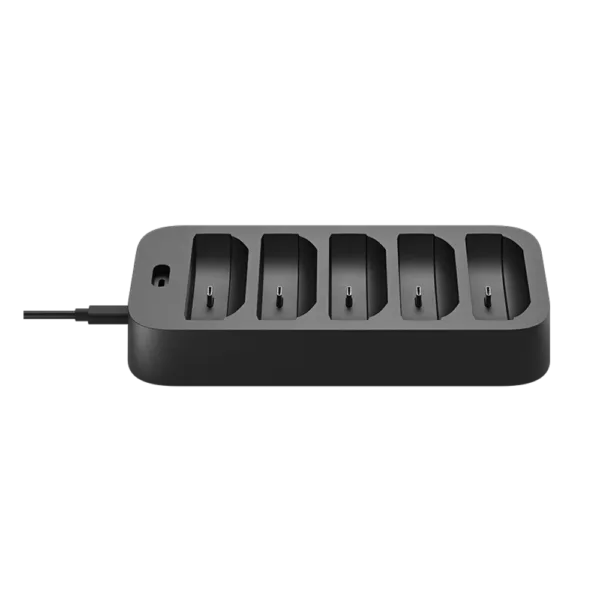

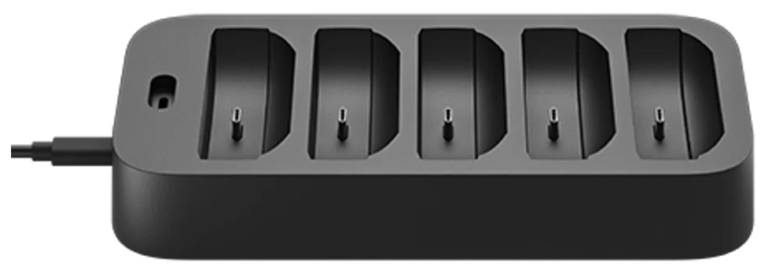

HTC VIVE USB-C Dock (5 Ports) For Vive Ultimate Tracker
HTC VIVE USB-C Dock is a docking station for charging VIVE Ultimate Tracker. It helps you organise device charging at your workstation. You can give it a permanent spot where you place your trackers when you finish.
The dock charges up to 5 trackers at once, so you can get them ready for your next session in one place. Charging takes approximately 7 hours with a 15 W USB-C PD power adapter, approximately 4 hours with 30 W and approximately 3.5 hours with 45 W. If you use several trackers, the power adapter's wattage matters when planning the break between sessions. Choose it based on how much time you can allow for charging the whole group of devices.
A single USB-C input supports 15 V/3 A (45 W), 15 V/2 A or 12 V/2.5 A (30 W), 12 V/2 A (24 W), 9 V/2 A (18 W) and 5 V/3 A (15 W). Each of the five USB-C outputs provides 5 V/1.6 A (8 W) with a 45 W input or 5 V/1 A (5 W) with a 30 W input. With a 24 W, 18 W or 15 W input, each output provides 5 V/0.5 A (2.5 W). Compare these profiles with the specifications of the power adapter you intend to connect.
The dock has storage space for 1 VIVE Wireless Dongle. You can put the adapter there when it is not in use and keep it by your charging setup. This helps you gather your accessories in a designated place before your next session. When you finish, you can use this compartment for the adapter instead of leaving it among your other accessories. The dongle itself is sold separately, so account for it separately if you need this accessory in your setup.
The housing measures 203 × 93.6 × 32.5 mm, and the dock weighs 335 g with a tolerance of ± 3%. These dimensions let you allocate space for the dock itself next to your computer or on an accessory shelf. When planning your setup, also allow room for the connected trackers and cable routing. The dimensions given are for the dock, so do not treat them as the footprint of the entire setup with devices attached. The weight also refers to the docking station alone.
The dock is designed for VIVE Ultimate Tracker. Choose it if you use this model and need a place to charge it.
Yes, you need a USB-C cable and a USB-C power adapter rated at least 15 W (5 V/3 A). The cable and power adapter are not included, so you will need to supply them separately.
No, the VIVE Wireless Dongle is sold separately. The dock has space to store it, but you need to purchase the adapter separately.
Full technical specifications grouped by topic.
1 USB-C input: 15 V/3 A (45 W); 15 V/2 A or 12 V/2.5 A (30 W); 12 V/2 A (24 W) or 9 V/2 A (18 W); 5 V/3 A (15 W)
5 USB-C outputs: with a 45 W input — 5 V/1.6 A (8 W); 30 W — 5 V/1 A (5 W); 24 W, 18 W or 15 W — 5 V/0.5 A (2.5 W)
